GTRLink NGTRX

Description

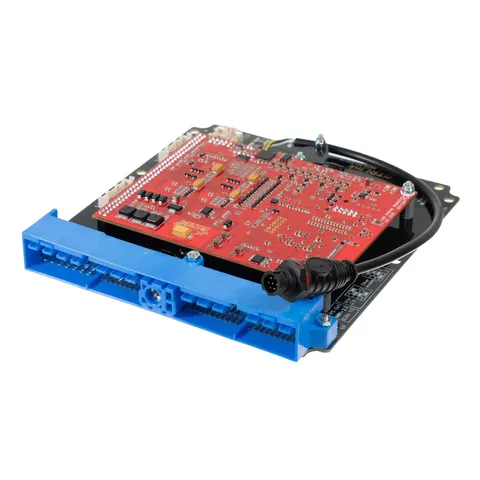

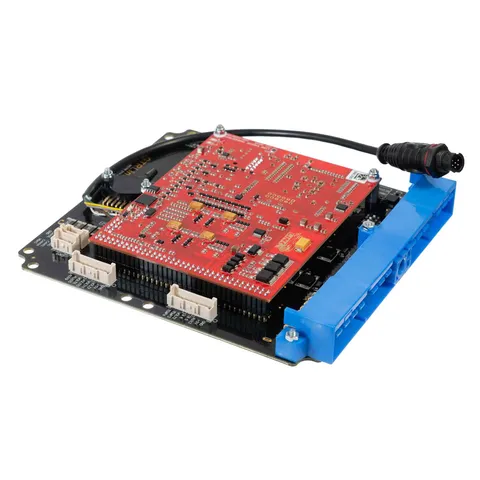

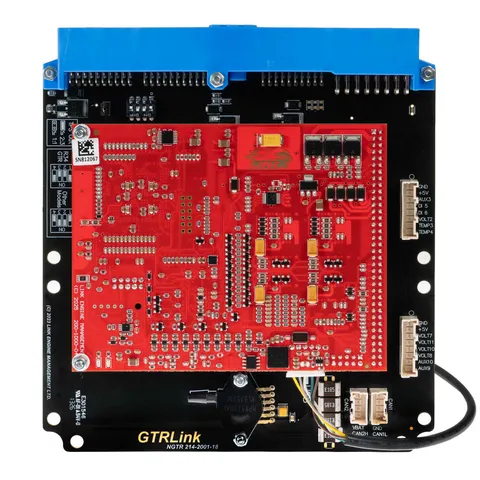

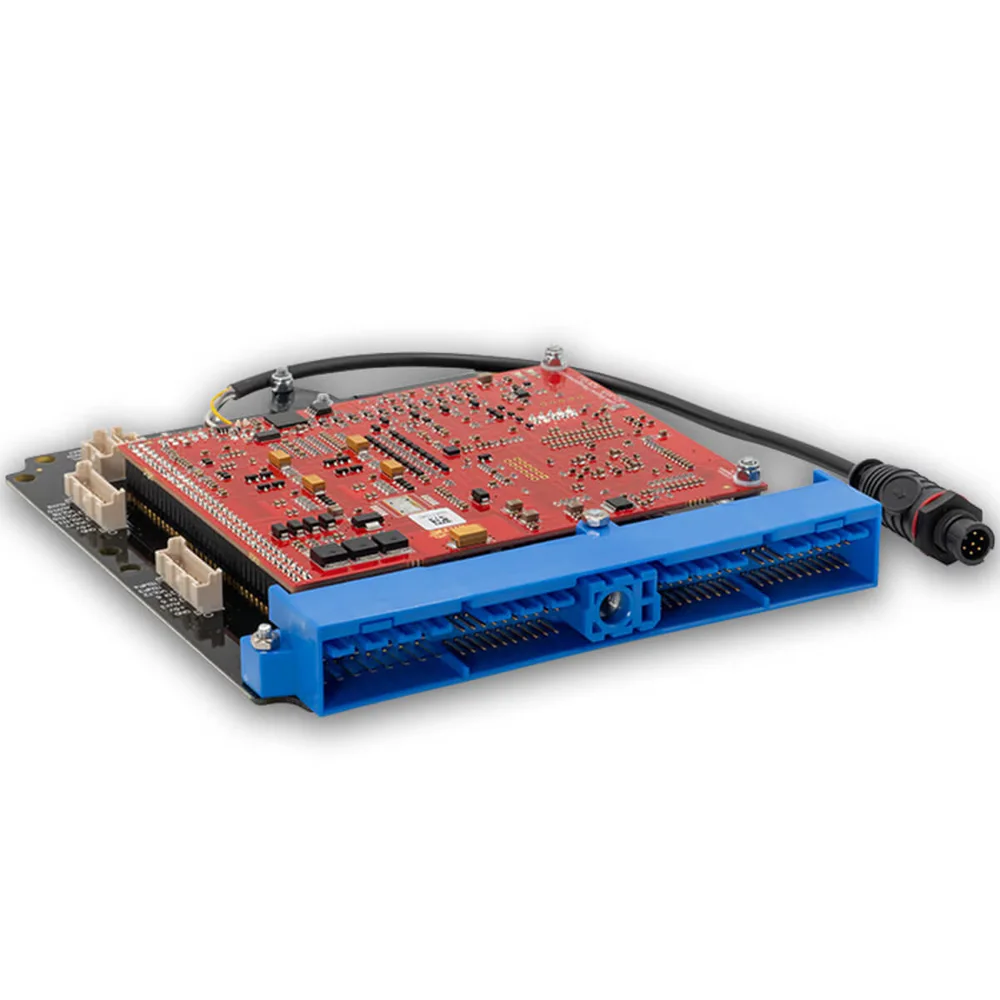

The NGTRX fits inside the factory enclosure and replaces the OEM ECU of blue-plug Nissan RB engines, with no alteration to the wiring loom. E-Throttle control as standard and the new 4-pin powered CAN connector.

Also available as a bundle with the XS Loom, CAN Lambda and CANJST4 cable.

G4X Plug-In ECUs replace the factory ECU and fit inside the original enclosure, with no alteration to the vehicle wiring loom. All the features of a Link G4X wire-in ECU, with a direct-fit installation.

Important notes

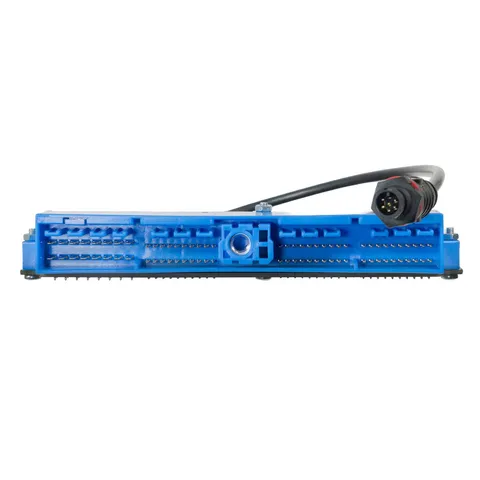

• Before purchasing, check that your factory ECU connector matches the header shown in the photos.
• Manual transmission only.
• Onboard 4 bar or 7 bar MAP sensor.
• Most factory features are supported.
• E-Throttle (drive-by-wire) support included as standard.
• 4-pin powered CAN connector: use the CANJST4 cable (Link PN 101-0198) to connect CAN devices. The old CANPCB cable is not compatible. The port also provides a protected 12 V supply with a 3 A self-resetting fuse.

Compatible applications

• RB26DETT: R32, R33, R34 Skyline GT-R and Autech 260RS Stagea
• RB20DE: R32 and R33 Skyline, A31 Cefiro
• RB20DET: R32 Skyline (incl. 4WD), A31 Cefiro and C33 Laurel (injectors 4 and 6 need swapping)
• RB25DE: R32 and R33 Skyline, C33 and C34 Laurel, A31 Cefiro
• RB25DET: R33 Skyline (incl. 4WD) and C34 Laurel
• RB30DE/DET/DETT built with non-Neo heads and blue-plug looms

G4X key features (where applicable)

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features: antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 MB data logging memory
• Staged injection
• Knock control with windowing

I/O expansion

Inputs and outputs available on the expansion connectors, as per Link documentation.

Expansion connector 1

Gnd	Sensor Ground Only
+5V Out	Low Current +5V Supply
DI5	Digital Input
DI6	Digital Input
An Volt 8	Analog 0-5V input
An Volt 2	Analog 0-5V input
An Temp 3	Temperature sensor input
An Temp 4	Temperature sensor input

Expansion connector 2

Gnd	Sensor Ground Only
+5V Out	Low Current +5V Supply
Ign 7	Ignition 7 Auxiliary Output
Ign 8	Ignition 8 Auxiliary Output
DI 9	Digital Input
DI 10	Digital Input
An Volt 10	Analog 0-5V input
Aux 11	Auxiliary Output 11
