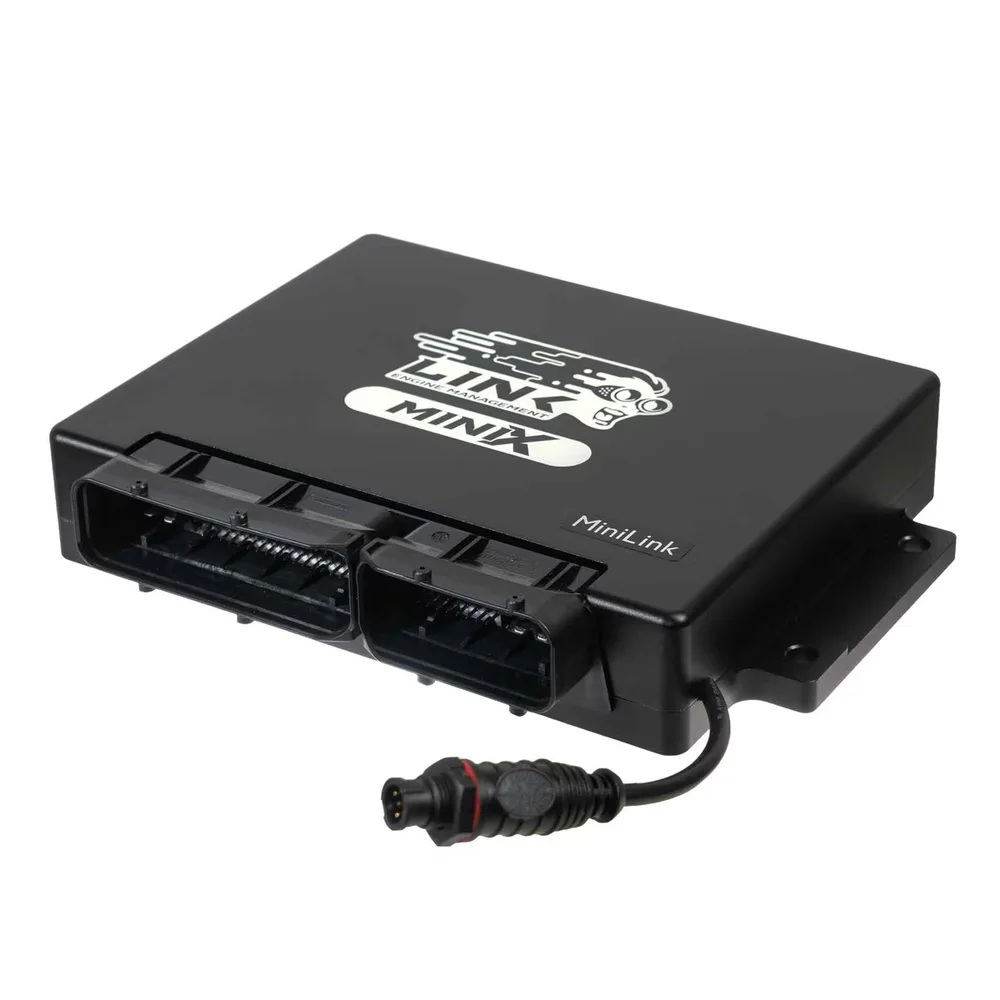

MiniLink MINIX

Description

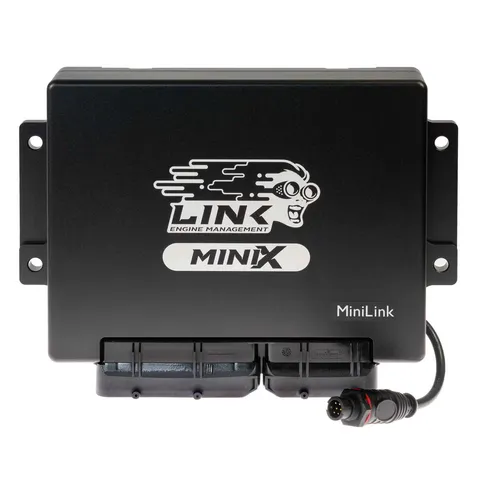

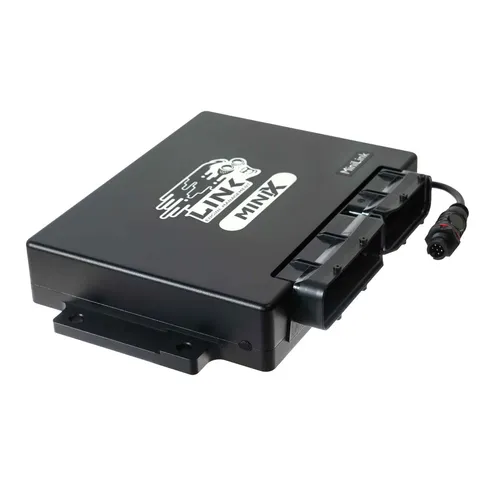

The MINIX comes in its own case which fits directly into the factory location and replaces the OEM ECU of the R50–R53 Mini with the Tritec 1.6 supercharged engine, with no alteration to the wiring loom.

G4X Plug-In ECUs replace the factory ECU and fit inside the original enclosure, with no alteration to the vehicle wiring loom. All the features of a Link G4X wire-in ECU, with a direct-fit installation.

Important notes

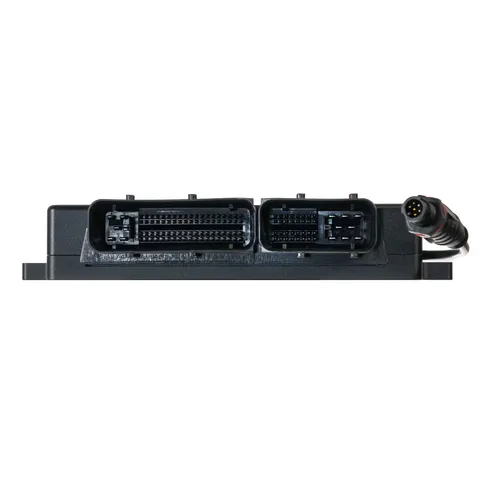

• Before purchasing, check that your factory ECU connector matches the header shown in the photos.
• Manual transmission only.
• XS Loom and a 4 bar MAP sensor are highly recommended (sold separately).
• Most factory features are supported.
• The Chronopack dash option is not currently supported.

Compatible applications

• R50–R53 MINI Hatch with the 1.6 supercharged engine

G4X key features (where applicable)

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features: antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 MB data logging memory
• Staged injection
• Knock control with windowing

I/O expansion

Inputs and outputs available on the expansion connectors, as per Link documentation.

Aux1	Auxiliary Output
DI8	Digital Input
DI9	Digital Input
An Temp 3	Temperature sensor input
An Temp 4	Temperature sensor input
An Volt 10	Analog 0-5V input
An Volt 11	Analog 0-5V input
+5V Out	Low Current +5V Supply
GND	Sensor Ground Only

*Please see the PC Link Help file for details regarding installing the Expansion Cable.
