MX5Link MX5NB2X

Description

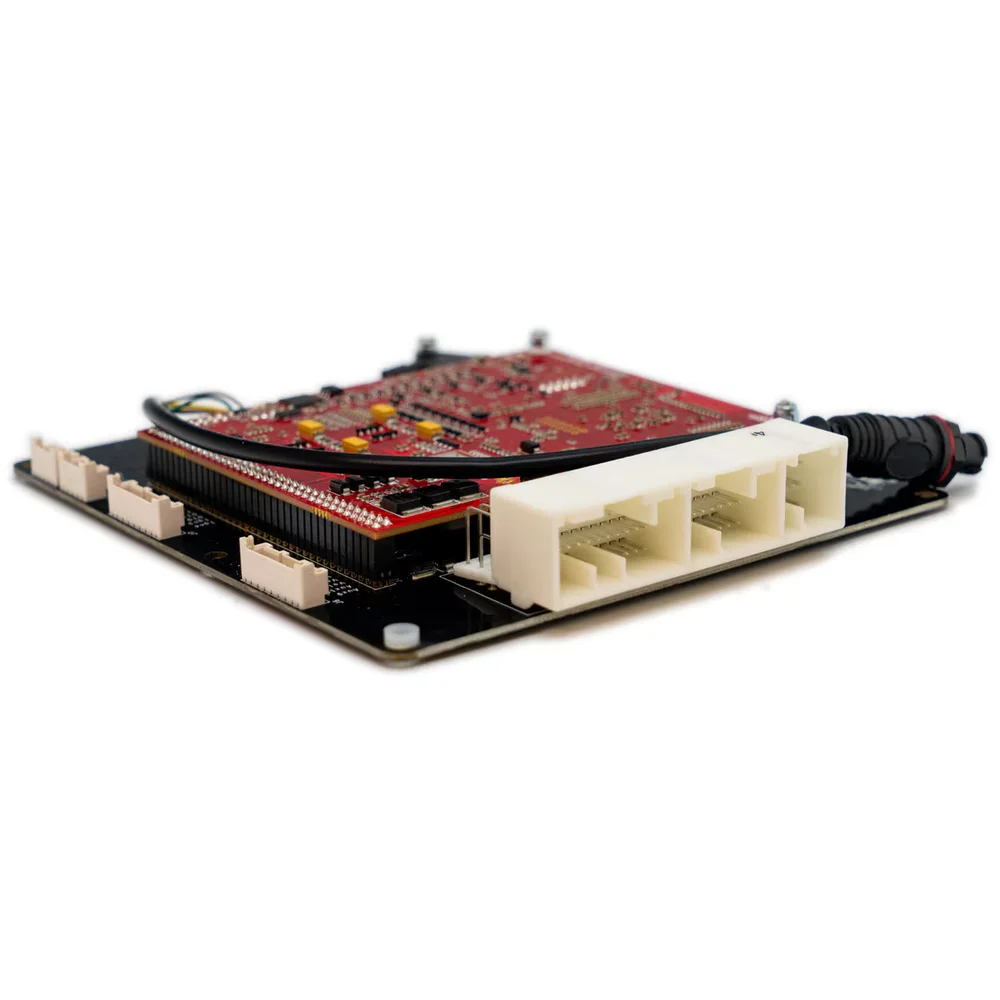

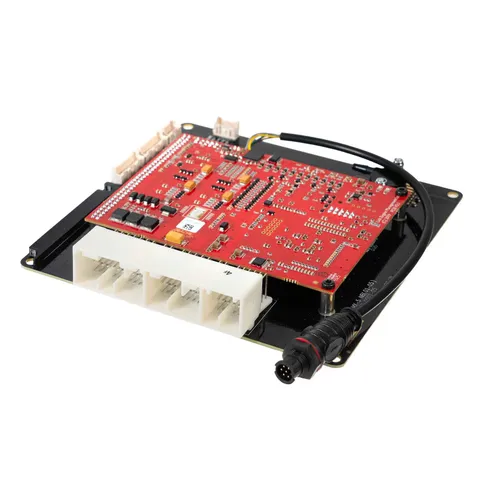

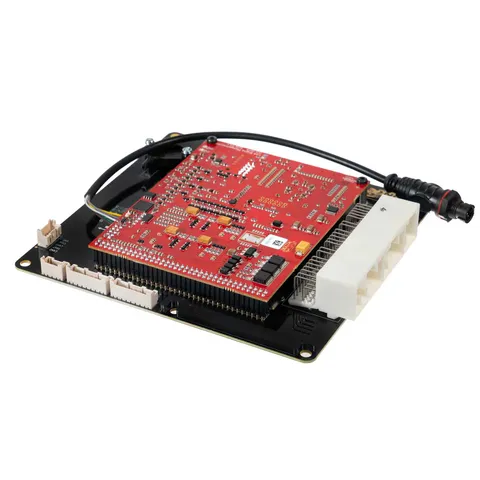

The MX5NB2X fits inside the factory enclosure and replaces the OEM ECU of the facelift MX-5 NB (MY2001–2005), both VVT naturally aspirated versions and the non-VVT Mazdaspeed turbo 1.8, with no alteration to the wiring loom.

G4X Plug-In ECUs replace the factory ECU and fit inside the original enclosure, with no alteration to the vehicle wiring loom. All the features of a Link G4X wire-in ECU, with a direct-fit installation.

Important notes

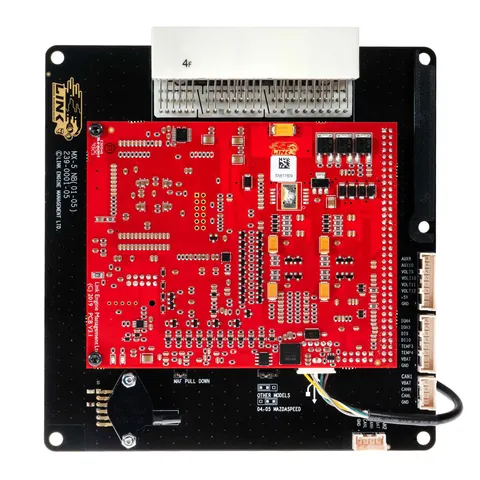

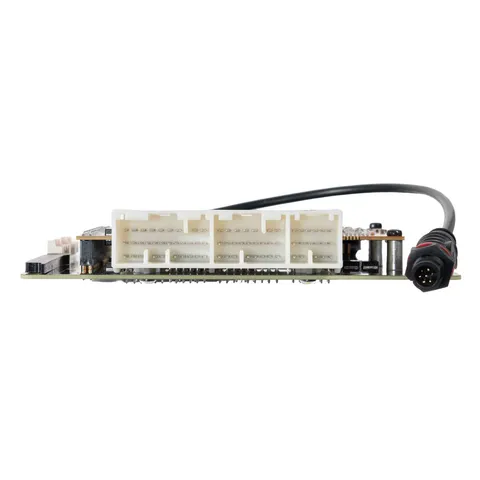

• Before purchasing, check that your factory ECU connector matches the header shown in the photos.
• Manual transmission only.
• Onboard 7 bar MAP sensor.
• Most factory features are supported.
• 4-pin powered CAN connector: use the CANJST4 cable (Link PN 101-0198) to connect CAN devices. The old CANPCB cable is not compatible. The port also provides a protected 12 V supply with a 3 A self-resetting fuse.

Compatible applications

• Facelift Mazda MX-5 NB MY2001–2005 with VVT naturally aspirated engines
• Non-VVT Mazdaspeed MX-5 turbo 1.8

G4X key features (where applicable)

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features: antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune automated fuel tuning
• Individual cylinder correction

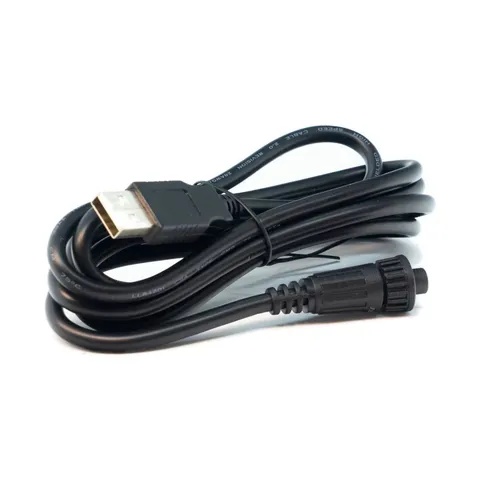

• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 MB data logging memory
• Staged injection
• Knock control with windowing

I/O expansion

Inputs and outputs available on the expansion connectors, as per Link documentation.

Expansion Connector 1

Pin 1	Ground (signal)
Pin 2	+14 out
Pin 3	An Temp 4
Pin 4	An Temp 3
Pin 5	DI10
Pin 6	DI9
Pin 7	IGN3
Pin 8	IGN4

E-Throttle Connector

Pin 1	Ground (signal)
Pin 2	+5V out
Pin 3	An Volt 12
Pin 4	An Volt 11
Pin 5	An Volt 10
Pin 6	An Volt 9
Pin 7	Aux 10
Pin 8	Aux 9
