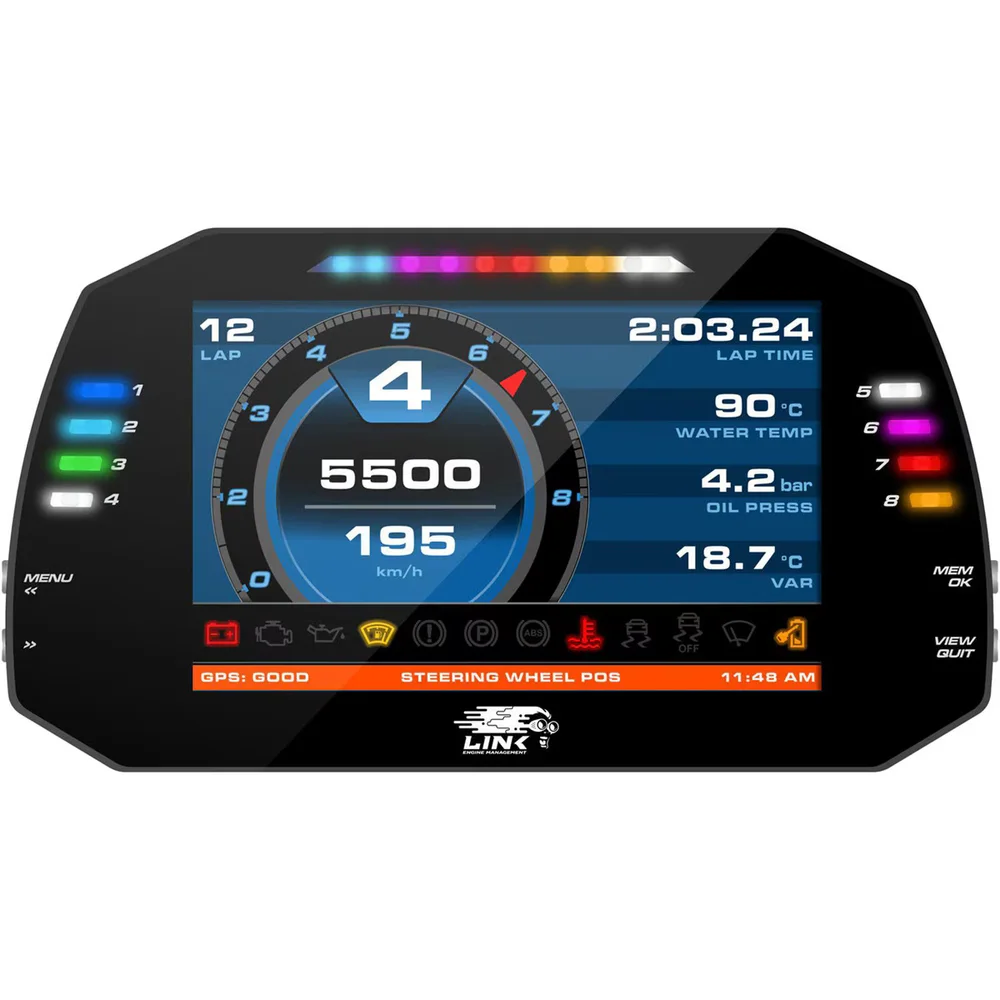

MXG Strada 7″ Dash Race Edition
7-inch TFT dash powered by AiM, with 10 RGB shift lights and 8 configurable alarm LEDs
- Part number
- 100-0173
- Application
- For all Link G4+ and G4X ECUs
- Availability
- Made to order
Added to cart · Go to cart
Ask about compatibility- Free insured shipping in Italy
- Card, PayPal, wallets and bank transfer
- E-invoice and 24 months
Description

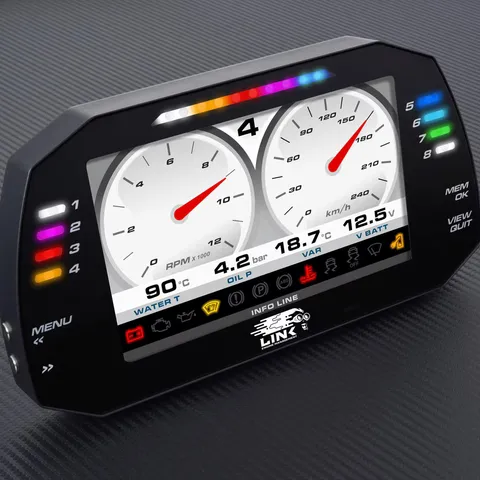

The Link MXG Strada Race Edition is a full colour 7-inch dash display with 10 RGB shift lights and eight configurable alarm LEDs, pre-configured to work with all Link G4+ and G4X wire-in and plug-in ECUs. This is the Race edition: a Street edition is available for road use, and the Strada dash also comes in 5-inch (MXS) and 10-inch (MXT) versions.
The ambient light sensor auto-adjusts the display brightness. The 10 RGB shift lights can be customised to define the RPM threshold for each gear; the eight alarm LEDs can be triggered by analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS data (GPS module available separately), with configurable colour, flashing, text message and priority.
The side buttons navigate a library of preset display layouts: the screen shows real-time data read from the ECU such as RPM, speed, water temperature and oil pressure. It connects directly to your Link ECU via the pin kit and wiring provided in the box and can be personalised with PC Link and AiM Race Studio 3.
Link Strada dashes are built with AiM: colour TFT screen, RGB shift lights and configurable alarm LEDs, pre-configured to work with all Link G4+ and G4X wire-in and plug-in ECUs.
Important notes
- CANPCB and CANF connectors are required for use with Plug-In ECUs (purchased separately).
- GPS module available separately.
Compatible applications
- All Link G4+ and G4X wire-in and plug-in ECUs
In the box
- Link MXG 1.2 Strada
- USB cable
- 14-pin standard wiring
- 23-pin connector with contacts
Specifications
| Display | 7-inch TFT |
|---|---|
| Resolution | 800 × 480 pixel |
| Contrast | 1000:1 |
| Brightness | 700 cd/m² – 1.100 lumen |
| Ambient light sensor | Yes |
| Alarm LEDs | 8 RGB freely configurable |
| Shift light | 10 integrated configurable RGB LEDs |
| CAN connections | 2 |
| ECU connection | CAN |
| Analog inputs | 8 configurable, max 1,000 Hz each |
| Digital inputs | 1 speed input, coil RPM input |
| Digital outputs | 1, max 1 A |
| Second CAN | Yes |
| Body | Anodised aluminium |
| Pushbuttons | Metallic |
| Connectors | 2 AMP + 1 Binder |
| Power consumption | 400 mA |

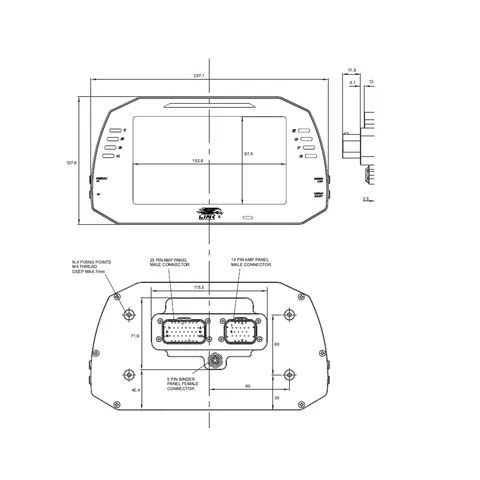

| Dimensions | 237 × 127,6 × 26 mm |
| Weight | 950 g |
| Waterproof | IP65 |
