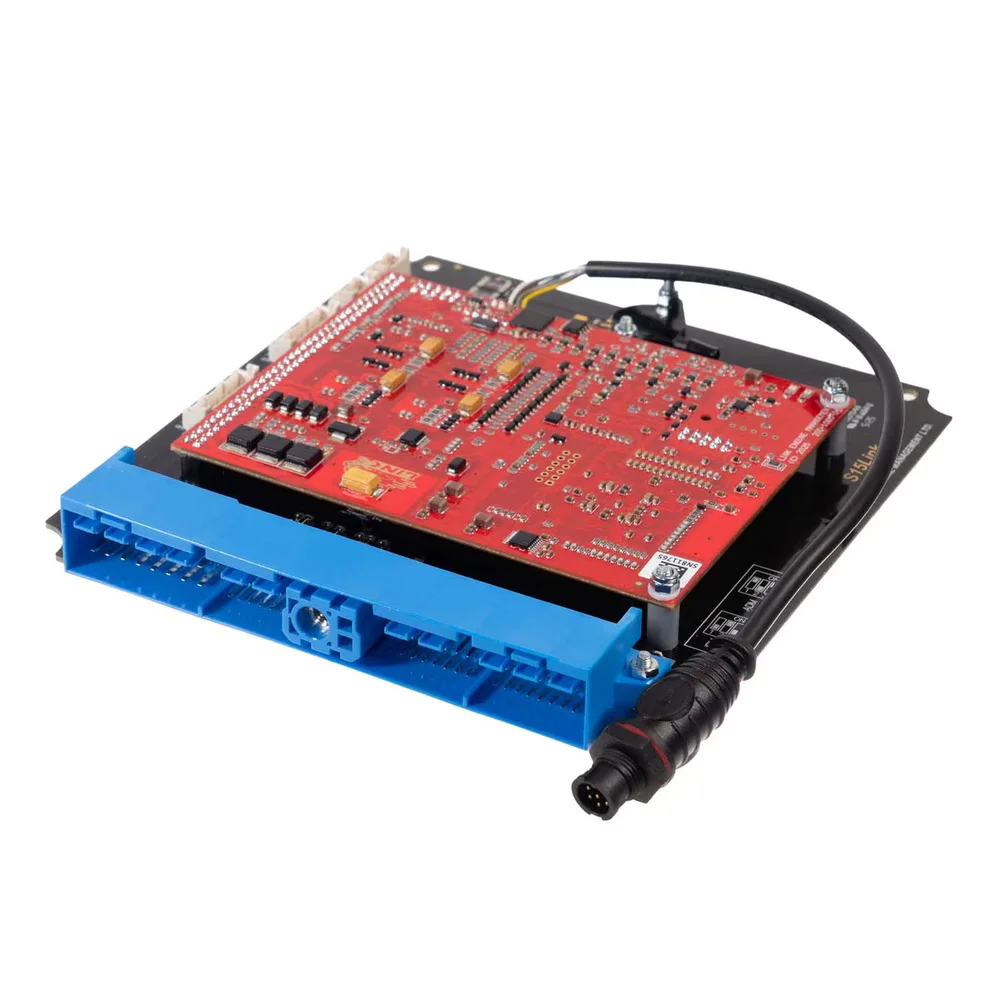

S15Link NS15X

Description

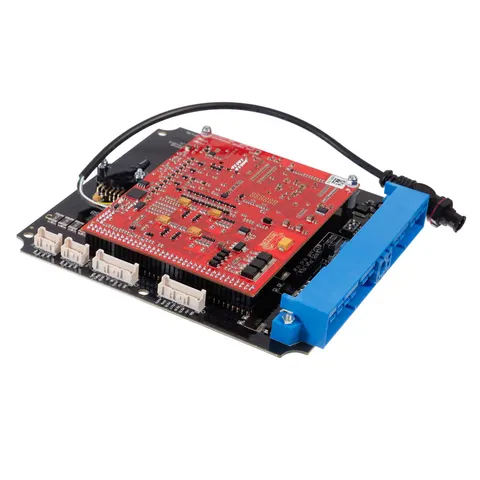

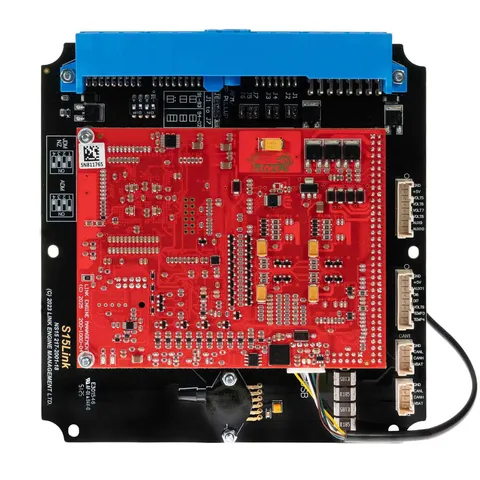

The NS15X fits inside the factory enclosure and replaces the OEM ECU of SR20 engines with the 64-pin blue header plug, with no alteration to the wiring loom. E-Throttle control as standard and the new 4-pin powered CAN connector.

G4X Plug-In ECUs replace the factory ECU and fit inside the original enclosure, with no alteration to the vehicle wiring loom. All the features of a Link G4X wire-in ECU, with a direct-fit installation.

Important notes

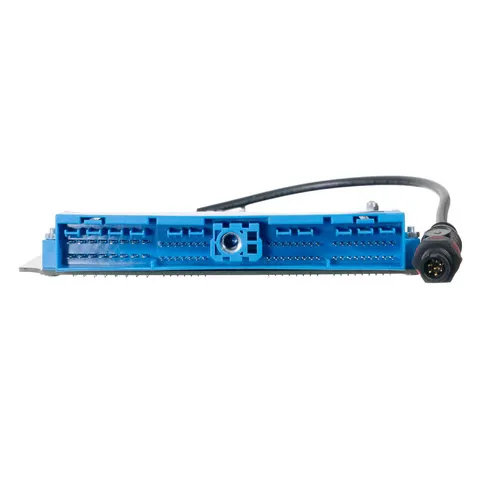

• Before purchasing, check that your factory ECU connector matches the header shown in the photos.
• Manual transmission only.
• Onboard 7 bar MAP sensor.
• Most factory features are supported.
• E-Throttle (drive-by-wire) support included as standard.
• 4-pin powered CAN connector: use the CANJST4 cable (Link PN 101-0198) to connect CAN devices. The old CANPCB cable is not compatible. The port also provides a protected 12 V supply with a 3 A self-resetting fuse.

Compatible applications

• Nissan S13 Silvia / 180SX SR20DET (but not CA18DET)
• Nissan S14a Silvia (facelift) SR20DET
• Nissan S15 Silvia SR20DET
• Nissan S15 Silvia SR20DE
• Nissan RNN14 Pulsar GTI-R SR20DET
• Nissan N15 Pulsar SR16VE
• Nissan N14 (distributor)

For the 76-pin header ECU see the S13Link NS13X.

G4X key features (where applicable)

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features: antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 MB data logging memory
• Staged injection
• Knock control with windowing

I/O expansion

Inputs and outputs available on the expansion connectors, as per Link documentation.

On Board MAP	An Volt 3
E-Throttle Relay	Aux 12

Expansion connectors

Expansion 1	Signal Ground
Expansion 2	+5V Out
Expansion 3	An Volt 5
Expansion 4	An Volt 6
Expansion 5	An Volt 7
Expansion 6	An Volt 8
Expansion 7	Aux 9
Expansion 8	Aux 10
Expansion 9	Signal Ground
Expansion 10	+5V Out
Expansion 11	Aux 11
Expansion 12	DI 6
Expansion 13	DI 7
Expansion 14	An Volt 9
Expansion 15	An Temp 3
Expansion 16	An Temp 4
