Link ECU · Link G4X Plug-In ECU
JZXLink JZX100X
G4X Plug-In for the Toyota JZX100 with the 1JZ VVT-i engine
- Part number
- 232-4000
- Application
- Toyota 1JZ-GTE VVT-i
- Availability
- Made to order
€2,278.85
Price includes 22% Italian VAT
Added to cart · Go to cart
Ask about compatibility- Free insured shipping in Italy
- Card, PayPal, wallets and bank transfer
- E-invoice and 24 months
Description

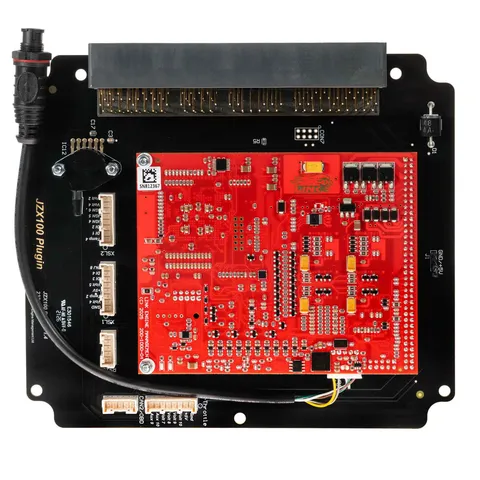

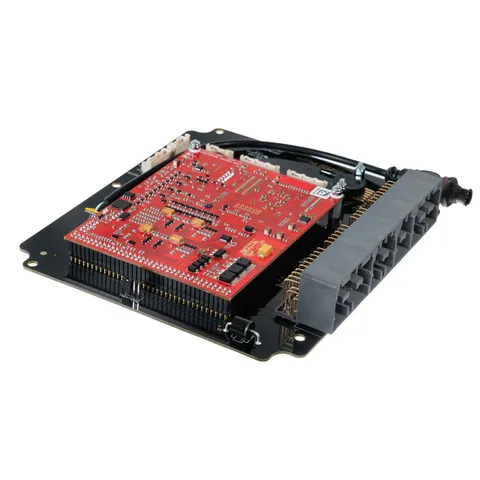

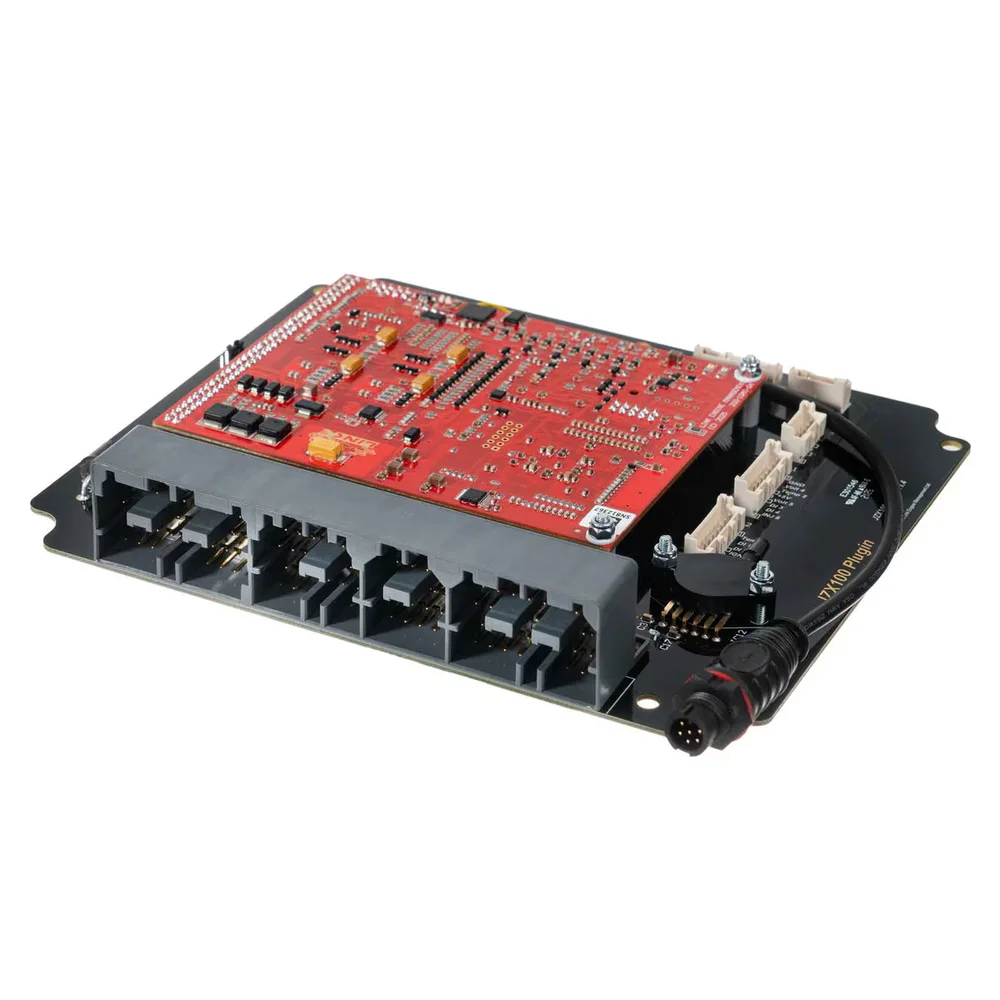

The JZX100X fits inside the factory enclosure and replaces the OEM ECU of the 1JZ VVT-i engine, with no alteration to the wiring loom.
G4X Plug-In ECUs replace the factory ECU and fit inside the original enclosure, with no alteration to the vehicle wiring loom. All the features of a Link G4X wire-in ECU, with a direct-fit installation.
Important notes

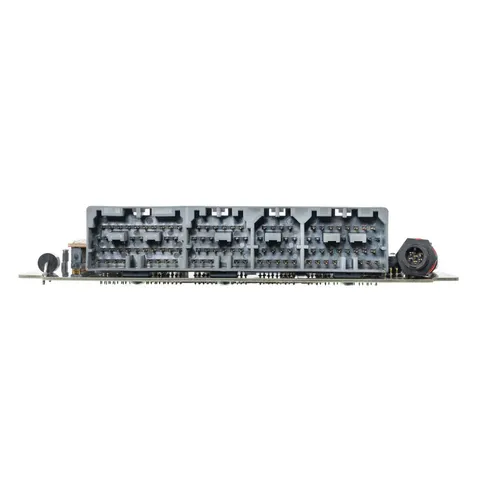

- Before purchasing, check that your factory ECU connector matches the header shown in the photos.
- Manual transmission only.
- Onboard 7 bar MAP sensor.
- Most factory features are supported.
Compatible applications
- Toyota JZX100 with the 1JZ VVT-i engine
G4X key features (where applicable)
- Up to 6D fuel and ignition mapping
- Precision closed loop cam control (four cam, independent control)
- Sequential fuel delivery
- Digital triggering, all OEM patterns
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features: antilag, launch, flat shift
- Continuous barometric correction (on board)
- CAN port
- QuickTune automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Stats recording into on-board memory
- Gear compensations for spark, boost and fuel
- Real time selectable dual fuel, ignition and boost maps
- Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
- Boost control referenced to gear, speed or throttle position
- 512 MB data logging memory
- Staged injection
- Knock control with windowing
I/O expansion
Inputs and outputs available on the expansion connectors, as per Link documentation.
Expansion Connector 1: (Con5)
| Gnd | Sensor Ground Only |
An Volt 4
An Temp 2
| +5V Out | Low Current +5V Supply |
An Volt 5
DI 3
DI 4
Aux Inj 8
Expansion Connector 2: (Con6)
An Temp 4
DI 1
DI 2
Aux Ign 4
Aux Ign 5
Aux Ign 6
An Volt 1
An Volt 2
Ethrottle Connector
| Ethrottle 1 | Ground (Signal) |
| Ethrottle 2 | +5v out |
| Ethrottle 3 | An Volt 10 |
| Ethrottle 4 | An Volt 9 |
| Ethrottle 5 | An Volt 8 |
| Ethrottle 6 | An Volt 7 |
| Ethrottle 7 | Aux 10 |
| Ethrottle 8 | Aux 9 |
